Quick Details

  • Feature: Gantry Crane
  • Condition: New
  • Application: Granite and marble yard or factory
  • Rated Loading Capacity: 10t
  • Rated Lifting Moment: Load Capacity
  • Max. Lifting Load: 10ton
  • Max. Lifting Height: 20m
  • Span: 18-35m
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Hengshan
  • Model Number: MG Model
  • Certification: BV ISO9001 OHSAS
  • Warranty: 24 Months, 24 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: a-frame Gantry Crane 10 Ton with hook for project
  • limit switch: Installed
  • Crane material: high quality steel plate
  • Over current protection: Installed
  • Over weight protection: Installed
  • OHSAS 18001:1999: Passed
  • ISO 9001:2008: Passed
  • Painting color: Yellow,red or on your request
  • OEM service: Available

Packaging & Delivery

Packaging Details Electric parts are packaged by high strong wooden case,the steel plates are packaged by the high quality plastic woven cloth
Delivery Time within 35 days after receiving depoist
Product Description



MG double girder gantry crane is ideal for outdoor applications where lifting facilities are provided without the cost of a building or any supporting steel work. They are also suited to indoor applications where existing building structures are not suitable to take overhead cranes, Hengyuan can be constructed with a cantilever to allow handling outside the rail centers.



specification:

  1.  Lifting capacity up to 900on
  2. Span is 20m to 100m
  3. Lifting height up to 100m
  4. Working class: ISOA5-A7/FEM2M-4M
  5. crane traveling mechanisms are operated in the driver cabin or remote control

Mechanical

  1.  Double box beam with steel legs moving through the ground beam as crane travelling system
  2.  The camber of main beam will be designed as Span*1-1.4/1000.
  3.  Steel Material: Q235 or Q345
  4.  Shot-blasting Sa2.5 for main girder and supporting beam
  5.  Epoxy zinc rich high quality painting.
  6.  Electrification and outfitting
  7.  Brand: CHINT SIEMENS Schneider
  8.  Conductor power supply: Cable Reel or busbar.
  9.  Frequency conversion, double speed, single speed, and All  hoist and crane movements are independent an  d can be run simultaneously different design duo to meet crane applications
  10.  Whole layout provides good protection against special  working environment. Such as gas workshop

 Optional crane parts

Drawing and data

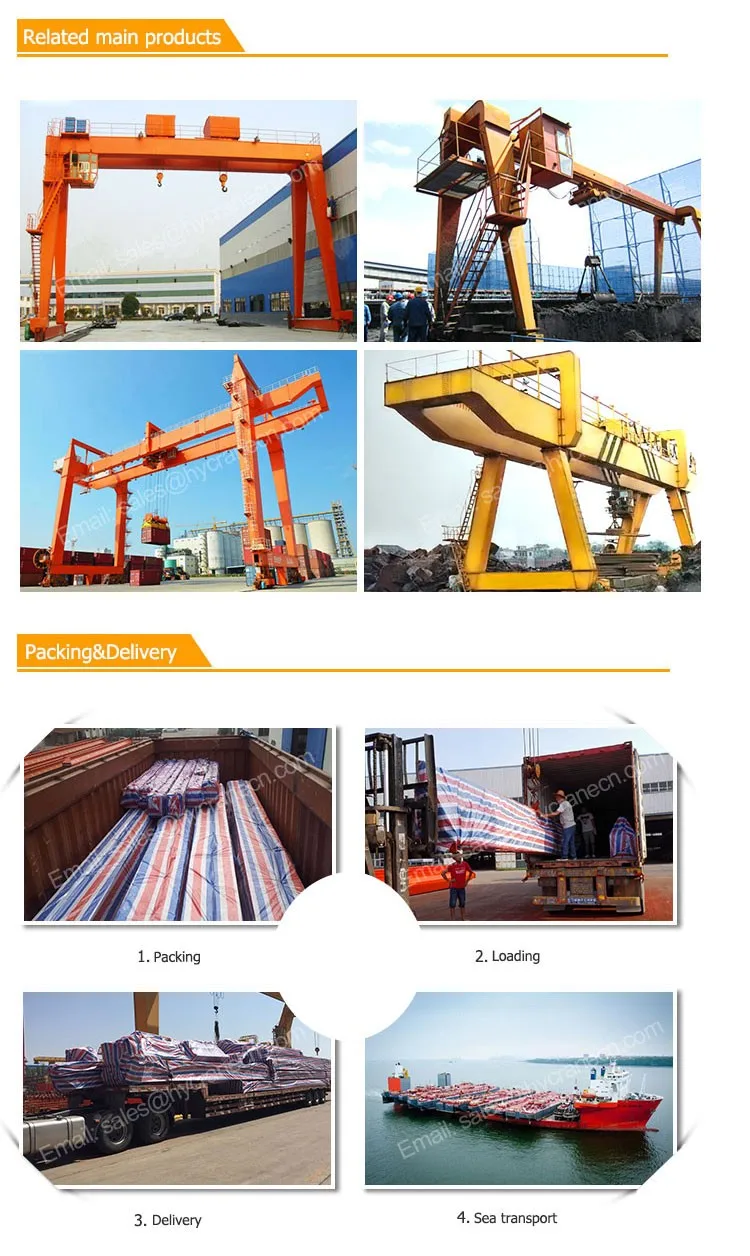

Related Main Product

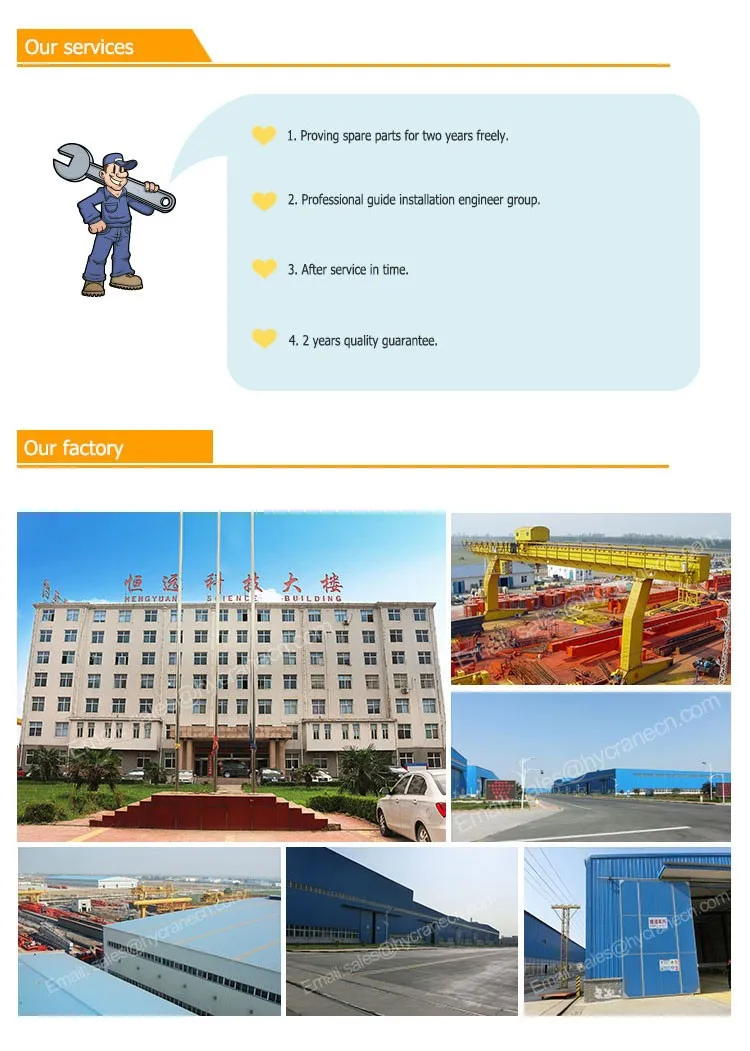

Our Services




Certifications




FAQ



Thank you for your patience to read our products, our corporation, if you still have other question, can be solved through the following two ways.

1. What’s the information should I provide when inquiry?

More details or drawings, more better.

A: Lift capacity

B: span

C: lift height

D: power source

Or other specials you give us will be more appreciated.



2. How many operating methods for my selection?

Standard operating methods:

A: pendent controller with push buttons.

B: remote control with push buttons

C: cabin(space capsule seat) control with joystick.

Choose any type as you like.



3. Can this type work in hazardous environment?

Sure! Can customize for you, acid proof or explosion proof, no problem for that.



4. How long is your warranty?

Our warranty is 15 months after received the goods.



5. Can you provide the serious lifting tools?

Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!



6. Usage period

About 30 years under common use.



7. How can we install the crane?

Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.

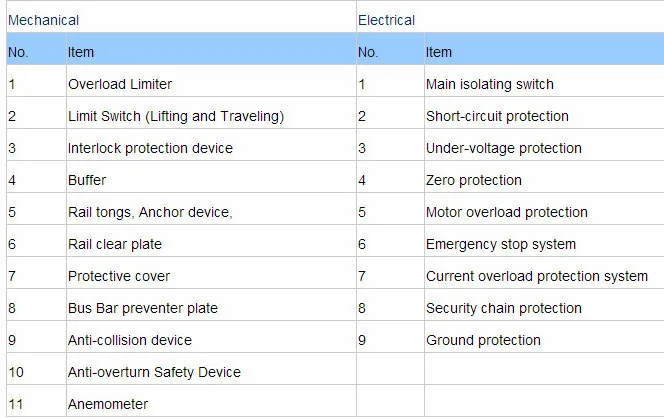

8. Safety device

Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar preventer plate, Anti-collision device, Main isolating switch, Emergency stop system, Motor overload protection, and so on.
